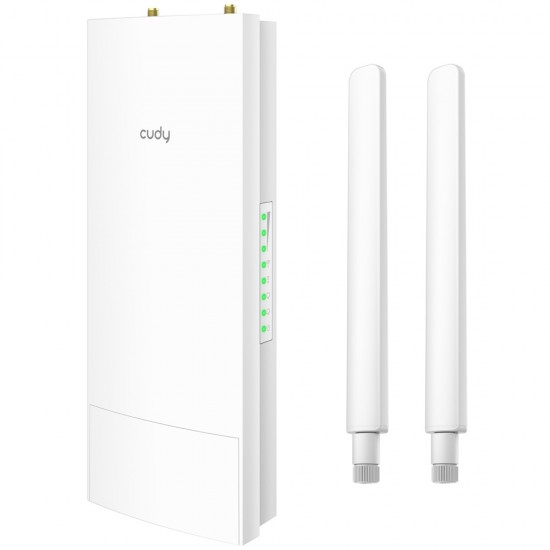

Cudy Outdoor 4G LTE Cat4 1200Mbps Wi-Fi Router Mesh Whole Home System Network

Description Cudy Outdoor 4G LTE Cat4 1200Mbps Router

LT500 Outdoor

● LTE FDD/TDD Cat 4

● AC1200 Wi-Fi

● 1× 10/100 Mbps WAN/LAN

● Nano SIM Slot

● 24 V Passive PoE

● 2× Internal Wi-Fi Antennas + 2× Detachable 4G Antennas

● VPN & DDNS

● IP65 Water Proof

Specifications

Model LT500-Outdoor

LTE Module Model EU Version

EC200A

LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

WCDMA: B1/B5/B8

GSM/EDGE: B3/B8

LTE Module Model US Version

EC25-AFXD

LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

Flash 128 Mbit (16 MB) SPI Flash

DDR 1 Gbit (128 MB) DDR

Interface 1× 10/100 Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-)

1× Reset Button

1× Nano SIM Slot

LED System/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength

Antenna 2× Internal Wi-Fi Antennas

2× External Detachable 4G Antennas

Wireless Features

Wireless Standards IEEE 802.11 ac/a/n/b/g

Frequency 2.4 GHz, 5 GHz

Signal Rate 867 Mbps (5 GHz), 300 Mbps (2.4 GHz)

Compatible with 802.11ac/a/b/g/n Wi-Fi standards

Transmit Power CE: <20dBm

FCC:<30dBm

Wireless Modes Enable/Disable Wireless Radio, WMM

Wireless Security WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK

Mesh Compatibility Works with other Cudy Mesh products (as the main Mesh node)

Software Features

WAN Type 4G/Dynamic IP/Static IP/PPPoE

DHCP Server, DHCP Client List, Address Reservation

Dynamic DNS Compatible with 15 more DDNS providers

NAT Port Forwarding, Port Triggering, UPnP, DMZ

VPN Sever & Client PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier

CWMP Protocol TR069 / TR098 / TR111 / TR181

ACS Server Compatibility GenieACS, OpenACS

Management Access Control, Local Management, Remote Management, Wake on LAN

TTL Extend/Spoof/Custom

DNS Cloudflare/Google/Quad9/Custom

Internet Protocols IPv4 / IPv6

IPv6 Relay

Dynamic(SLAAC/DHCPv6)

Static (Fixed IP)

Passthrough

MAP-E (Dual-stack)

DS-Lite (Dual-stack)

SMS Send/Receive

4G Band Lock Support

Others

Ingrees Protection Rating IP65 (Router only when installed vertically, the PoE Adapter is not waterpoof)

Working Temperatures

-20 ~ 60 °C (-4°F ~ 140°F)

Extend -40 ~ 65°C (-40°F ~ 149°F) (Booted up in advance. Performance may drop slightly.)

Dimensions

Router Body: 240×100×53.7 mm (9.5×3.9×2.1 inches)

Antennas: 197.5×21.6×15.5 mm (7.8×0.9×0.6 inches)

Height of Router with Antennas installed: 438 mm (17.2 inches)

Package Content 2× detachable 4G antennas

24V/0.5A passive PoE adapter

Pole Installation Accessory

Ethernet Cable

Quick Installation Guide

System Requirements

Windows, MAC OS, NetWare, UNIX, or Linux

Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser

If you are using 4G as your internet access, you will need a nano SIM card with an active data subscription,

If you are using WAN as your internet access, you will need a fiber/cable/DSL modem or any other wired internet source.
